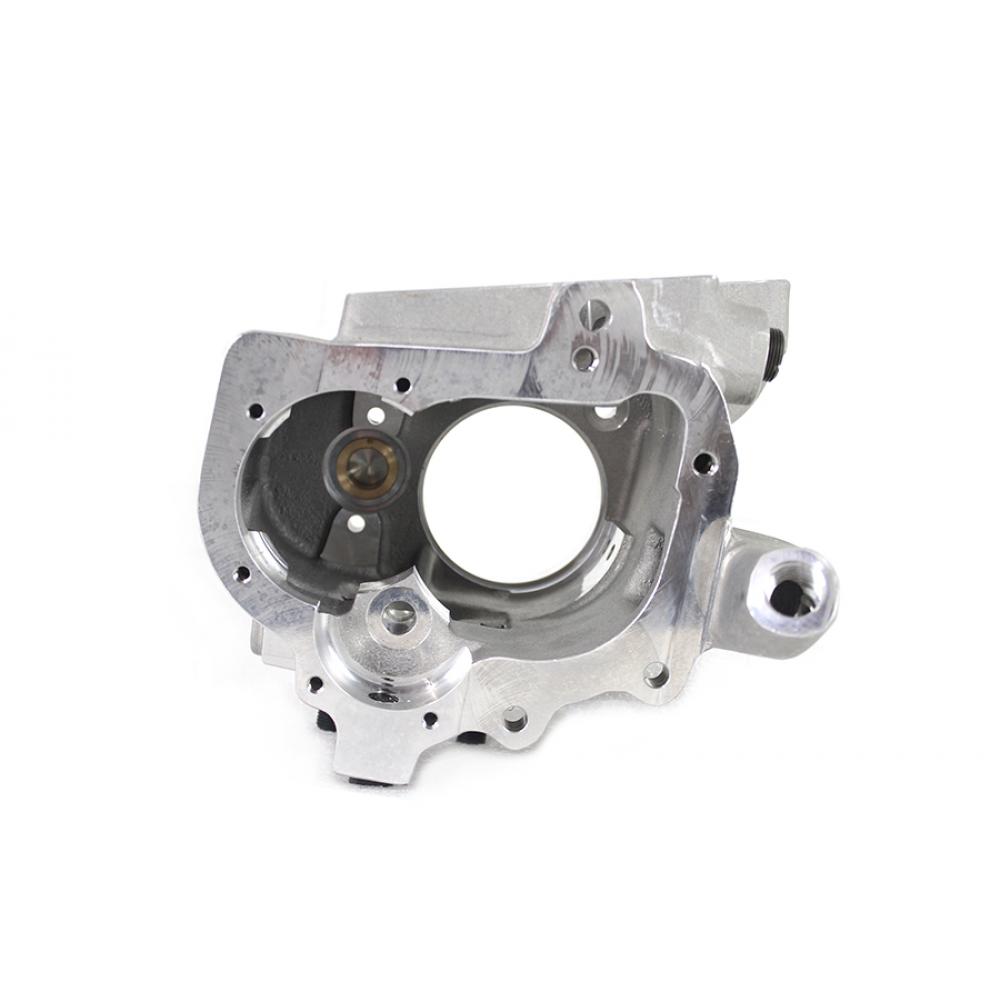

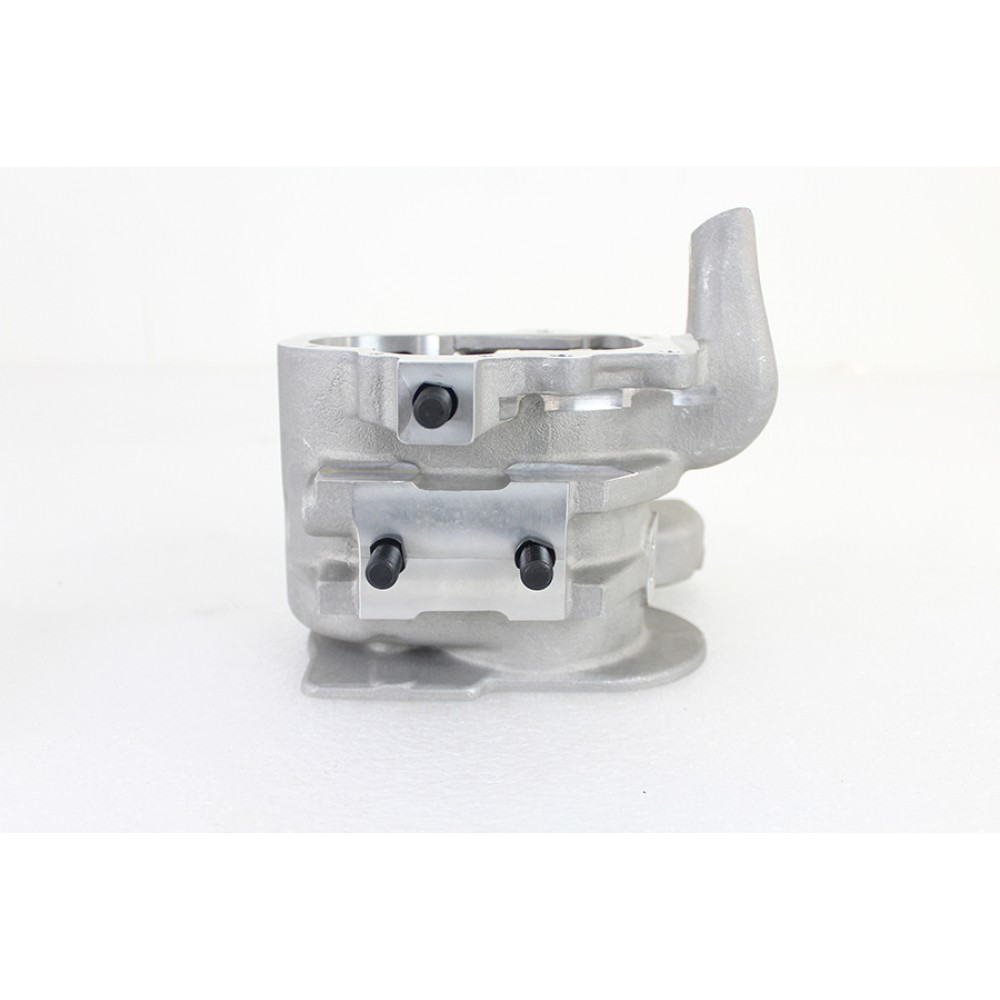

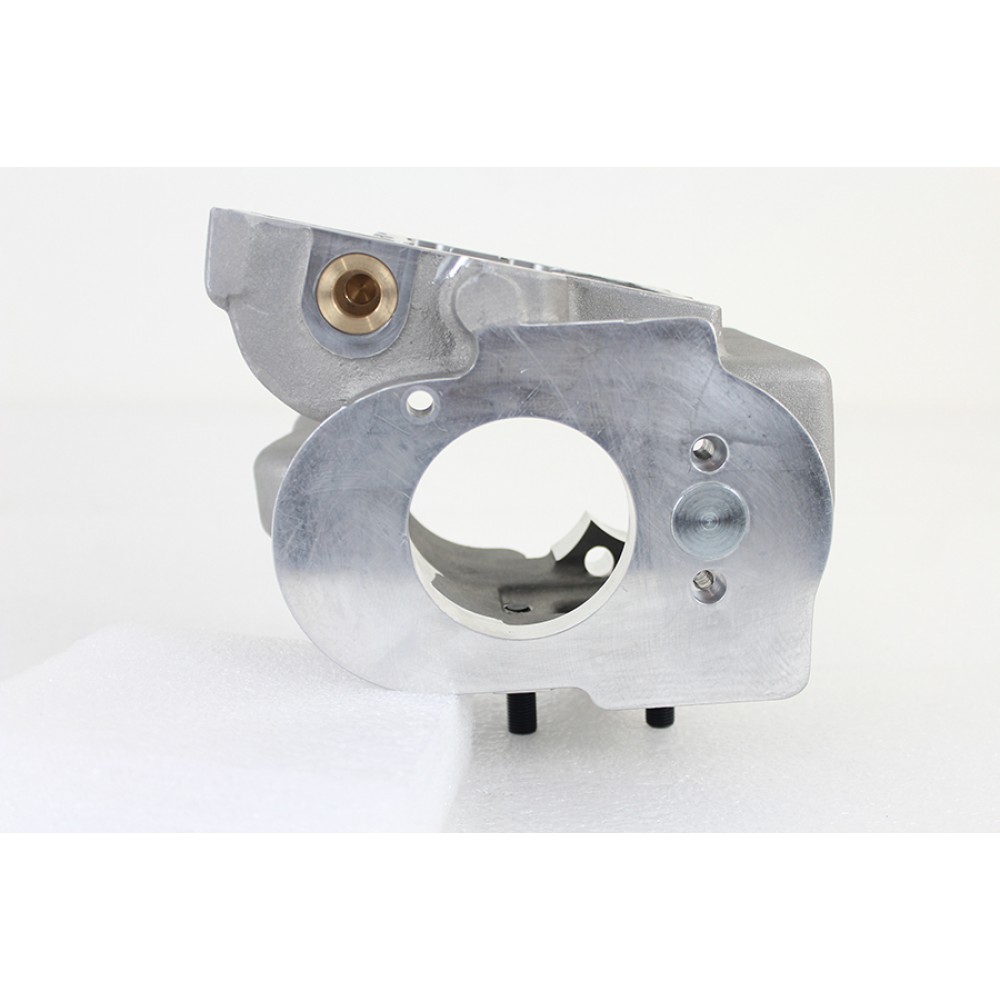

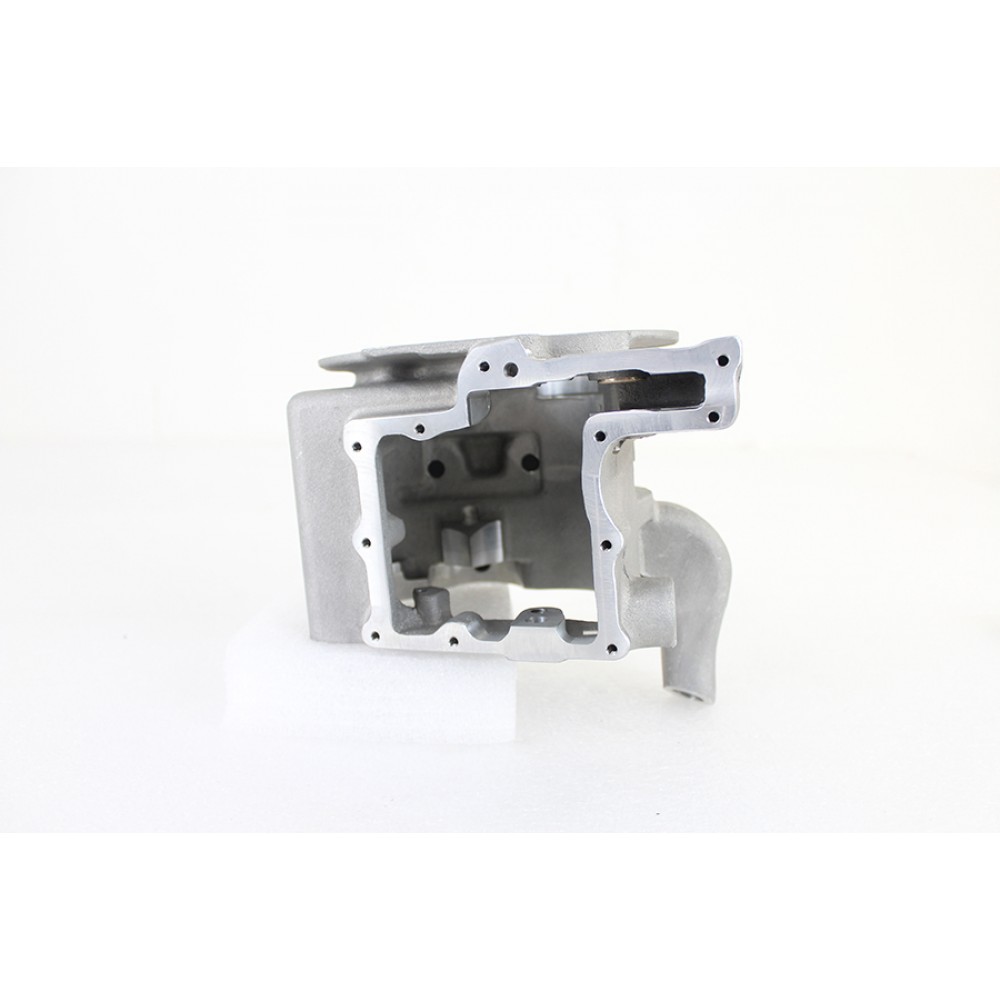

45" 3 speed transmission case.
VT No: 49-0172
OEM No: 34702-41
45" W/G transmission case.
Case accepts: 3-speed, 3-speed and reverse, and 4-speed internals. *NOTE: 45" W/G transmission case requires components and hardware as listed for assembly separately. *NOTE: Bottom mount studs, left countershaft transmission bushing, both the inner and outer shifter bushings with the welch plug, and the cam plunger bushing are installed. *NOTE: The main race required, available separately, has to be pressed in, must be honed after installation.
FITS
WL 1937-1939 with 3-speed reverse models
W 1941-1952 4-speed
G 1937-1963 with 3-speed reverse models
OEM No. 34702-41
UOM 1 - EA
Manufacturer V-Twin
Origin Imported
Tech Note
Required to use with #10-2527 Cam Bushing .005 Oversize. Required to use with #12-0599 Engine Case 1/2" Welch Plug. Required to use with #9919-3 Transmission Bottom Stud Kit.
Required to use with #10-2514 Transmission Shifter Shaft Bushing Large. Required to use with #10-2518 Shifter Shaft Bushing Small.
Required to use with #10-2547 Left Countershaft TransmissionBushing. Required to use with #2655-1 Transmission Fill Plug.
Required to use with #9761-4 Kick Starter Trip Bolt and Nut Kit. Required to use with #49-0080 Transmission Case Cover. Required to use with #17-0391 Servi-Car Reverse Idler Shaft.
Required to use with #49-0455 Transmission Side Cover for on4-speed Transmission Case. Required to use with #9836-10 Chrome Countersunk Washer Set 3/8".
Required to use with #9686-16 Sprocket Cover Stud Nut Kit Parkerized. Required to use with #9666-27 Transmission Top and Side Cover Screw Kit Parkerized.
Required to use with #17-0372 2nd Gear Retaining Bracket.
V-Twin Manufacturing Part Number: 49-0172
Manufacturer:
Manufacturer Part Number: 225802
Harley-Davidson & Indian OEM Cross Reference Part Numbers: 34702-41
