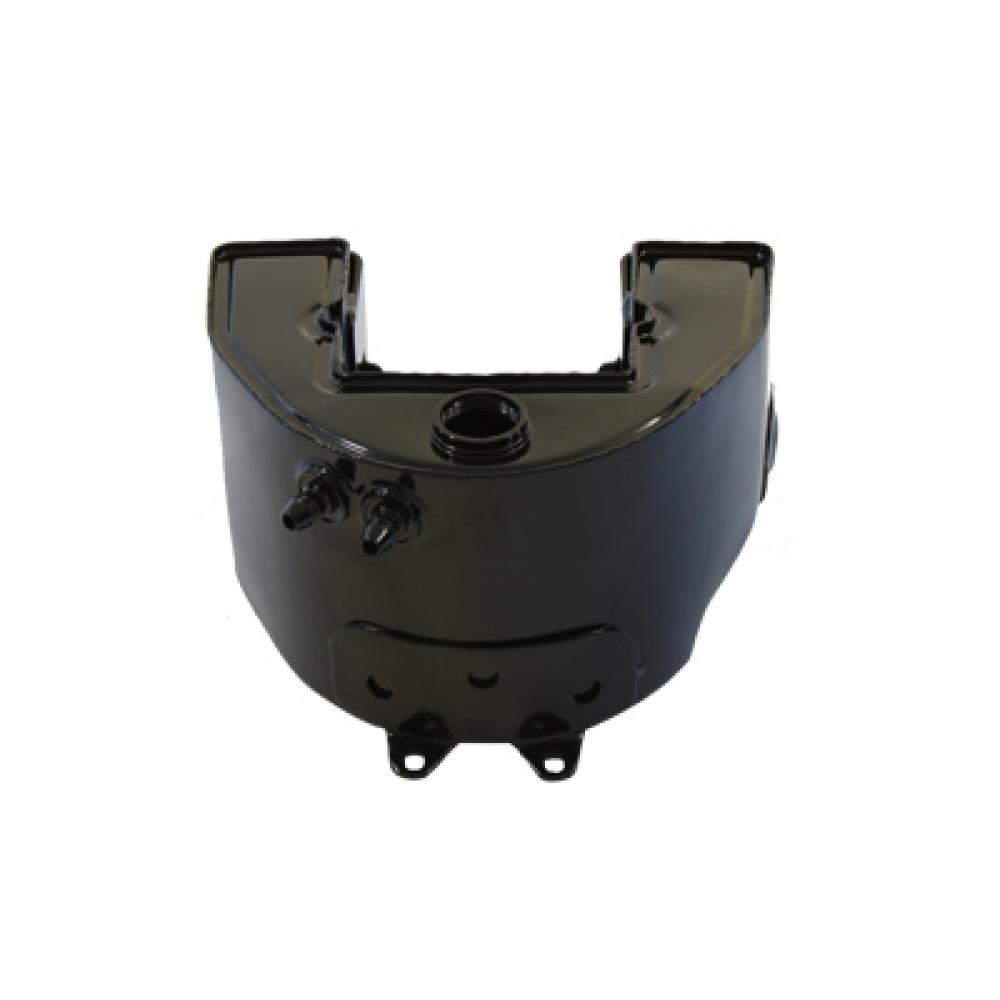

Replica black TT Bobber rigid frame oil tank is 1-5/16" shorter to accommodate a raised position for chain alignment.

VT No: 40-0493
Replica black TT Bobber rigid frame oil tank is 1-5/16" shorter to accommodate a raised position for chain alignment.
NOTE: Purpose of this tank is to raise the transmission and clutch pak for TT racing or hillclimbing for greater ground clearance. Battery compartment is shorter in this tank so a smaller battery will be required. Chain guard will be in a raised position so modifications must be made to the front mounting tab as most TT bikes did not use a chain guard in the early racing era. Oil tank front mount must be removed and rewelded in place 1.25" upward. To raise the transmission mount plate use (5) 1-5/16" spacers and mount as stock. This will require (2) 3/8"-24 UNF x 3" bolts and (2) 3/8"-24 UNF x 2-1/2" bolts for the transmission plate, on the 5th mount hole use (1) 3/8"-16 UNC x 2" bolt. The raising of the trans



Fits:
EL 1936-1952
FL 1941-1957
UL 1940-1948
UOM: 1 - EA
Country of Origin: Imported

Finish: Black
Style: Wrap Around
2018 Catalog pages: 636

2017 Catalog Page: 640

V-Twin Manufacturing Part Number: 40-0493
Manufacturer:
Manufacturer Part Number:

Harley-Davidson & Indian OEM Cross Reference Part Numbers:

Tech Notes:
Suggested to use #8115-1, #8114-1, or #9504-1 timing plugs.
Suggested to use with #37-1018 Black Spacer Set 3/8" X 1" X 1-5/16"
Suggested to use with #53-0520 Black H-3 6V Battery
Suggested to use with #50-0549 Mini 12V 6 Amp AGM Battery
Suggested to use with #53-0571 12V Sealed Battery
